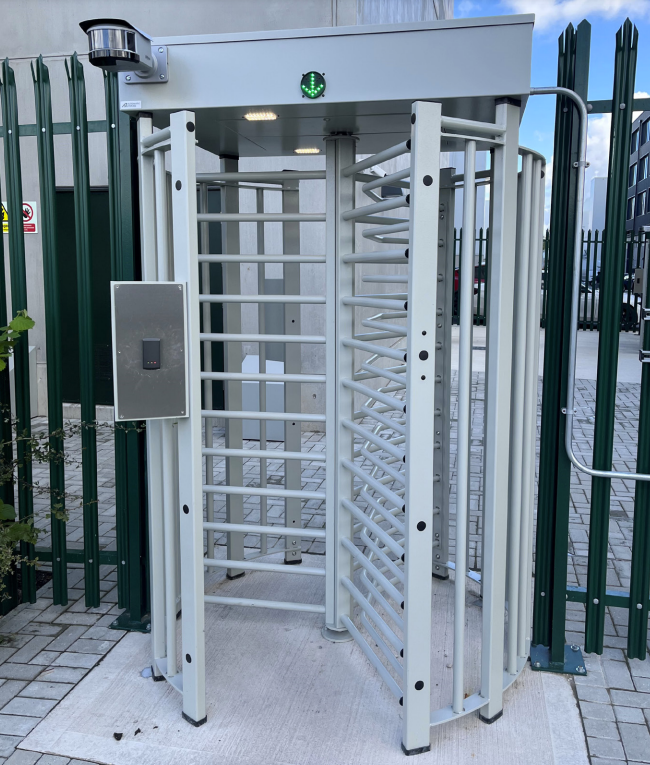

AUTOMATIC SYSTEMS TRS FULL HEIGHT TURNSTILE RANGE

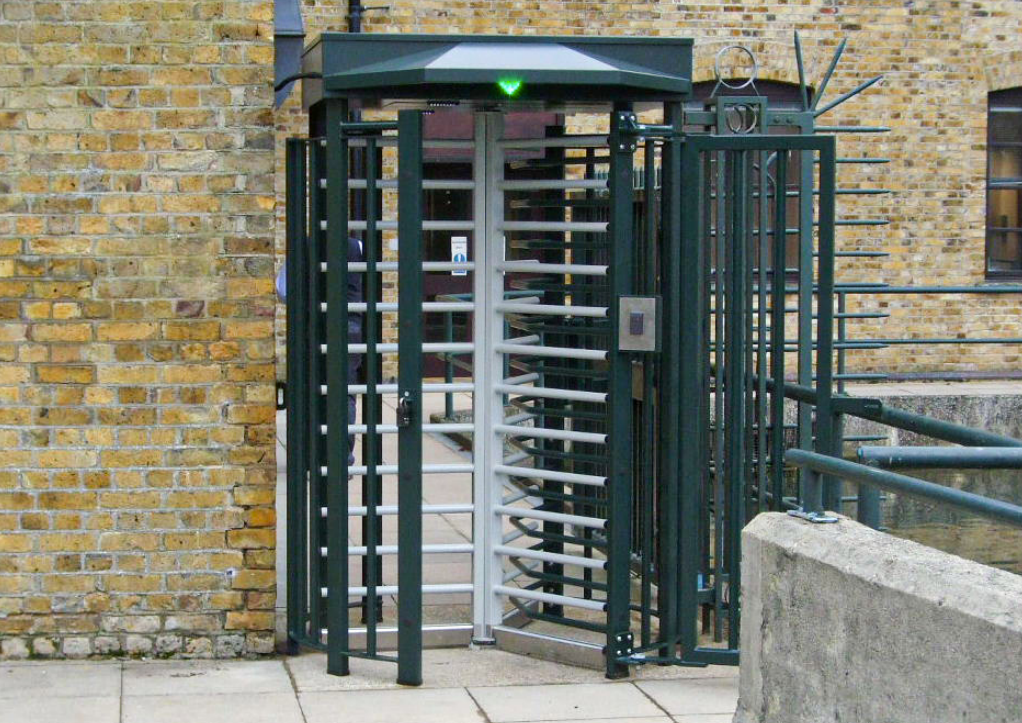

Full-height turnstiles are essential in commercial buildings for several reasons related to security, access control and operational efficiency.

Automatic Systems Product Overview
Choice of Design

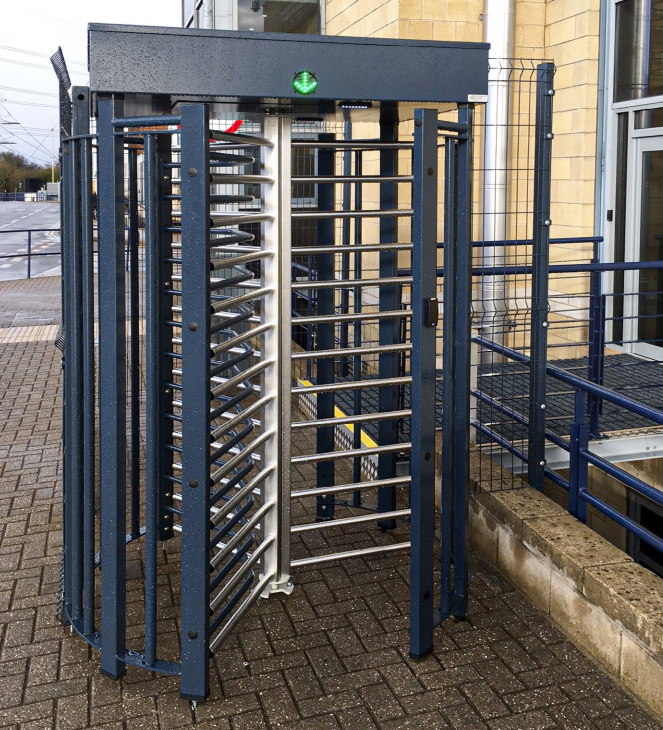

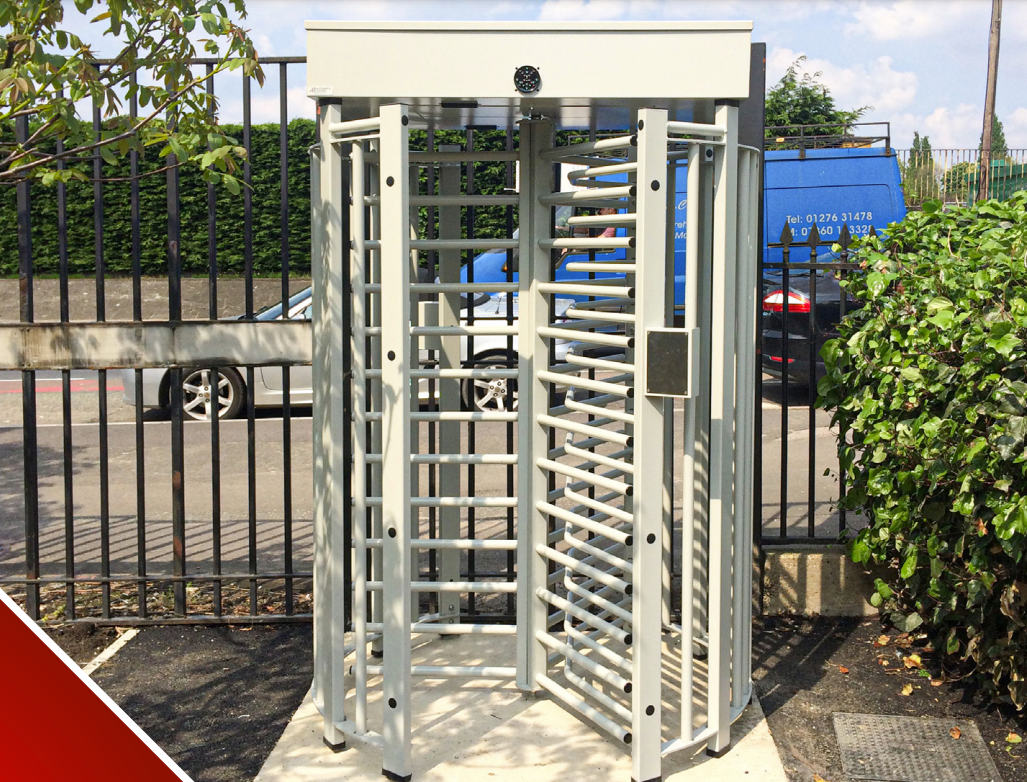

1. TRS 370 – 3 combs positioned at 120° to one another

2.TRS 371 – 4 combs positioned at 90° to one another

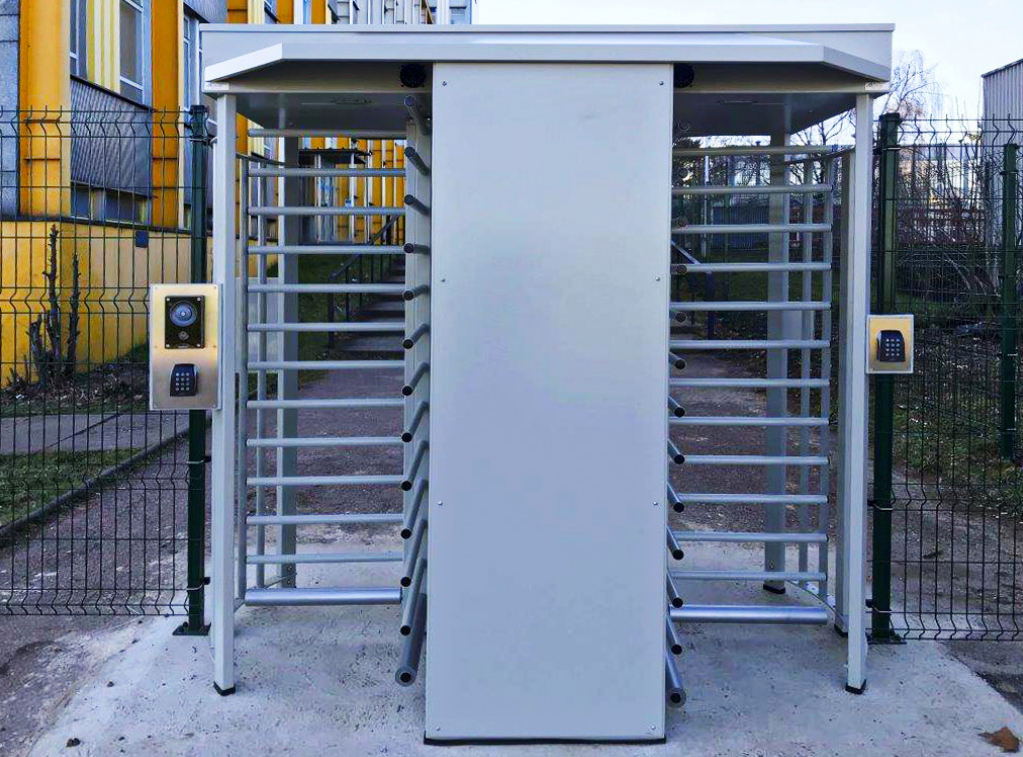

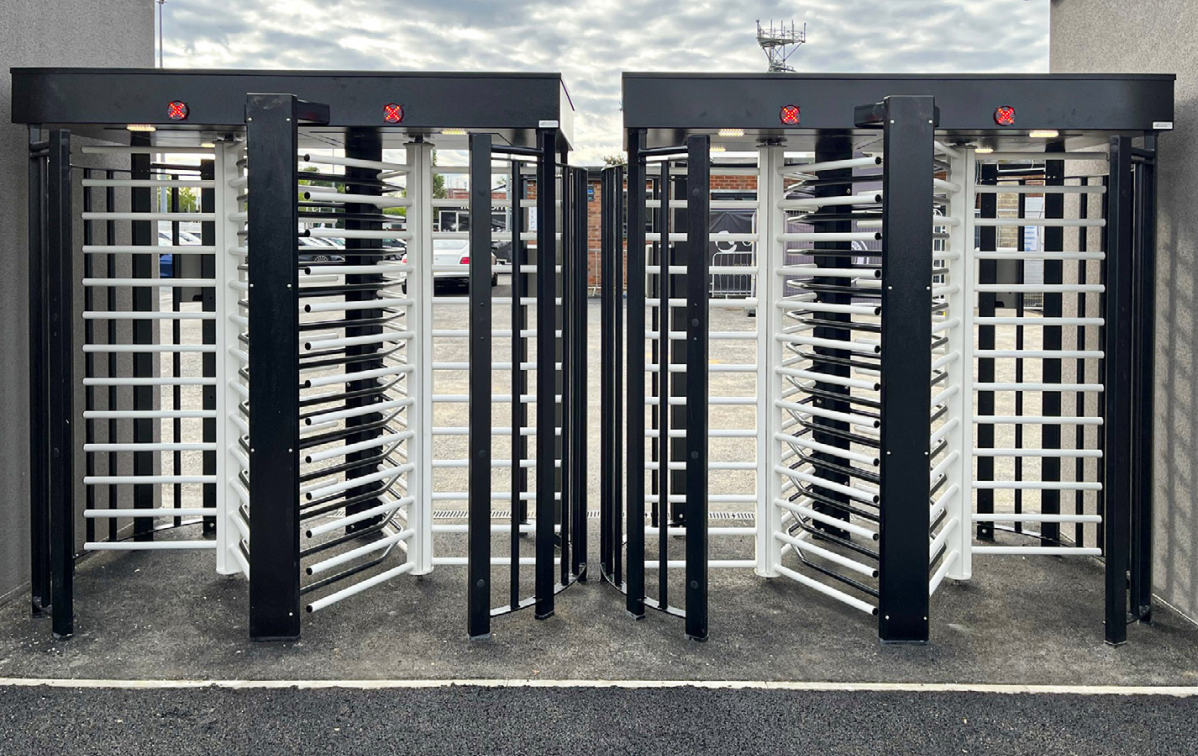

3.TRS 372 – Double version of the TRS 370

4. TRS 373 – Double version of the TRS 371

Standard Features

1. Galvanised and finished in 2 coats of standard paint (RAL7038, RAL6005, RAL7016 or RAL9010)

2. All parts are welded to a high standard for guaranteed robustness

3. Secure roof compartment containing all control equipment

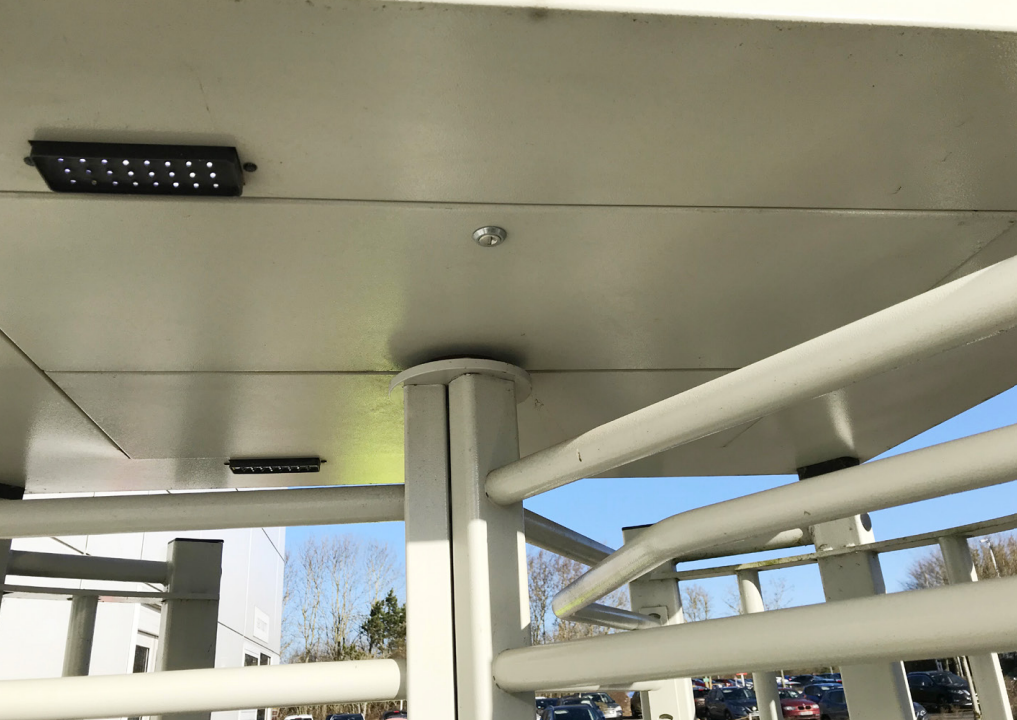

4. Internal LED lighting

5. Directional pictograms to advise users when to proceed or wait at the turnstile

6. Dust free seal between the central axis of the obstacle and the upper box section

7. Integration with all access control products

8. Diamond point roof for evacuation of water

9. High build quality – Electromagnets, cams, hydraulic dampers and tension springs all contribute to the smooth running of the turnstile for an extensive period of time ensuring product longevity and reliability

Principaux avantages

1. Enhanced Security

• Prevents Unauthorised Entry: Full-height turnstiles are designed to prevent unauthorised individuals from entering restricted areas. They typically require authentication (key cards, biometrics, etc.) to allow access, providing a secure barrier. Automatic Systems turnstiles includes a mechanism preventing the return of an obstacle after 60° rotation and preventing passage fraud in the opposite direction.

• Eliminates Tailgating: Unlike waist-high turnstiles, full-height models make it almost impossible for two people to enter simultaneously (tailgating), ensuring that only one person passes per authorisation.

• Deters Forced Entry: These turnstiles are highly robust and difficult to bypass or vandalise, acting as a strong physical deterrent against forced entry.

2. Access Control and Monitoring

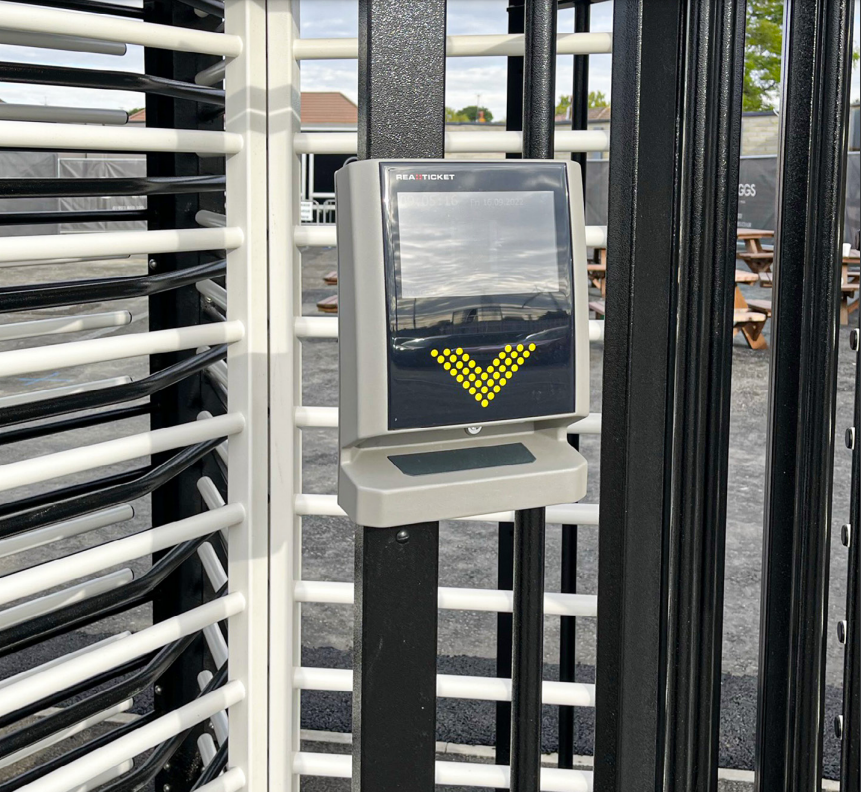

• Controlled Access: Full-height turnstiles can be integrated with electronic access control systems such as key cards, fobs, or biometric devices. This allows building management to monitor who enters and exits the premises. All sizes of access control readers can be accommodated.

• Traffic Flow Regulation: They regulate the flow of people entering or exiting, ensuring that individuals are accounted for, which is especially important in busy commercial buildings including high-traffic sensitive sites, such as industrial, sports and commercial complexes, offices, airports, power plants, amusement parks, military bases and parking facilities.

• Audit Trail: Since these systems are typically integrated with access control software, they maintain an audit trail of entry and exit times, providing valuable data for security and operational purposes.

3. Occupancy Control and Safety

• Accurate People Counting: Full-height turnstiles ensure that the building’s management can accurately monitor the number of people inside the facility at any given time, which is critical for fire safety regulations and emergency evacuations.

• Restricted Area Segregation: They are often used to segment specific parts of a building (such as high-security areas, employee-only zones, or data centres) where strict control is needed over who can enter.

4. Operational Efficiency

• Reduced Need for Security Personnel: By automating entry and exit points, turnstiles reduce the reliance on security guards for access control tasks, making them a cost-effective solution for long-term security management.

• Seamless Integration: Full-height turnstiles can be integrated with other security systems such as alarms, video surveillance, and visitor management systems to create a seamless and comprehensive security environment.

• Flexible Emergency Configuration: The end user can determine how the turnstile behaves (locked/unlocked in case of emergency).

5. Improved Visitor Management

• Visitor Verification: In commercial buildings where visitors need to register, full-height turnstiles help verify credentials before allowing entry, improving overall security without needing personal supervision.

• Time Management: They can reduce congestion during peak entry and exit times, facilitating smooth movement while maintaining security.

6. Aesthetics and Professionalism

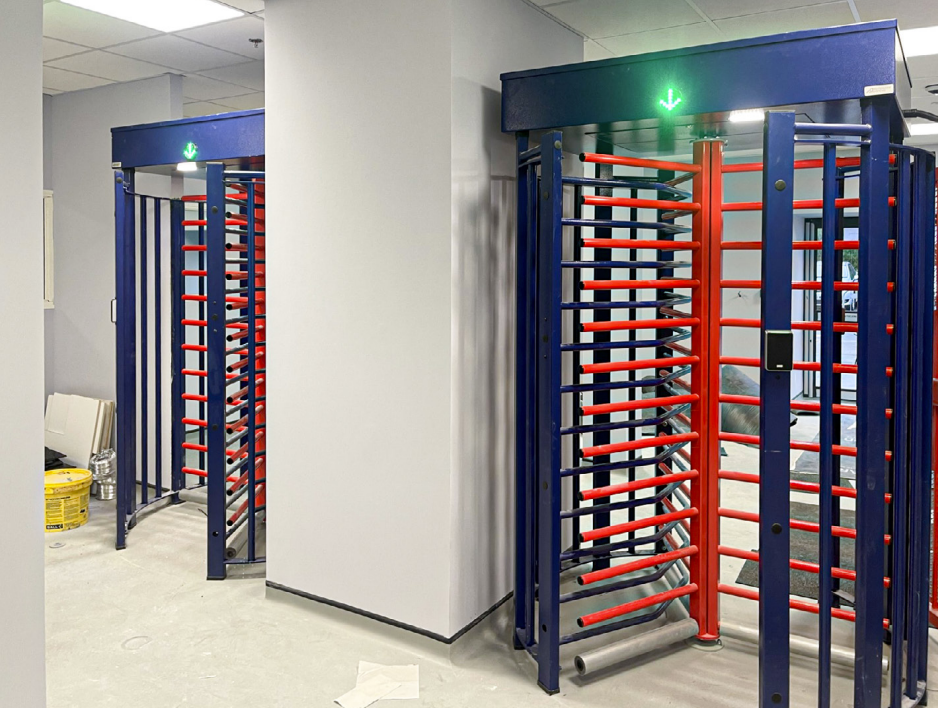

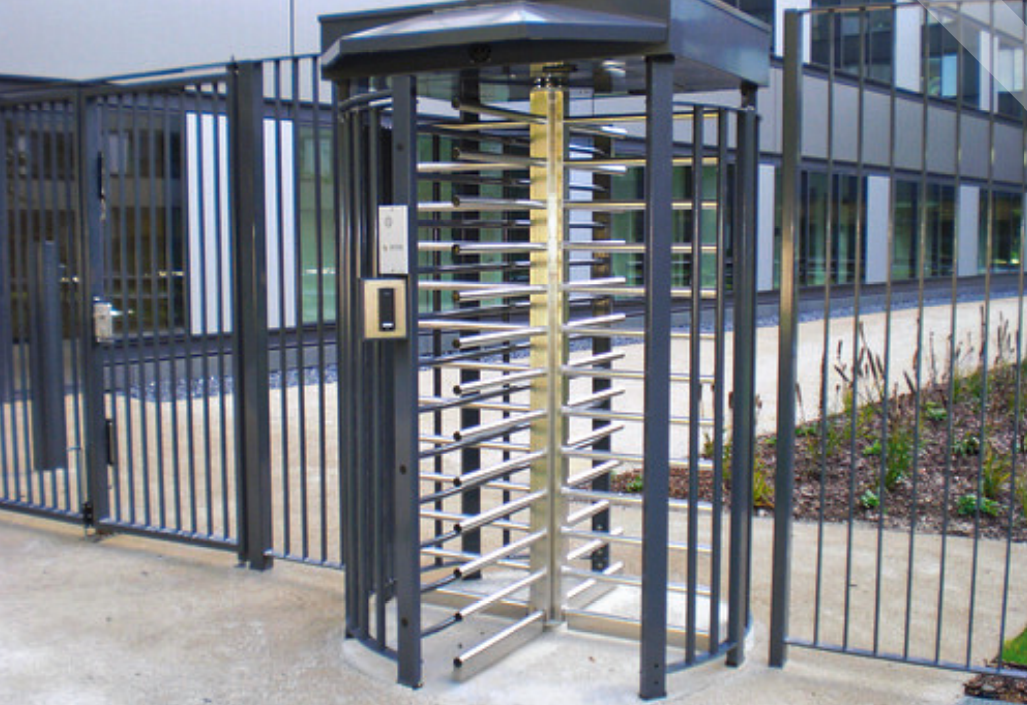

• Architectural Integration: Many modern turnstiles are designed to be sleek and aesthetically pleasing, contributing to the professional image of a commercial building without sacrificing security. A popular variation is to select stainless steel rotors.

• Colours: Almost any non-standard colour can be included.

• Canopies: Canopies can be added to suit if required.

Complementary Products

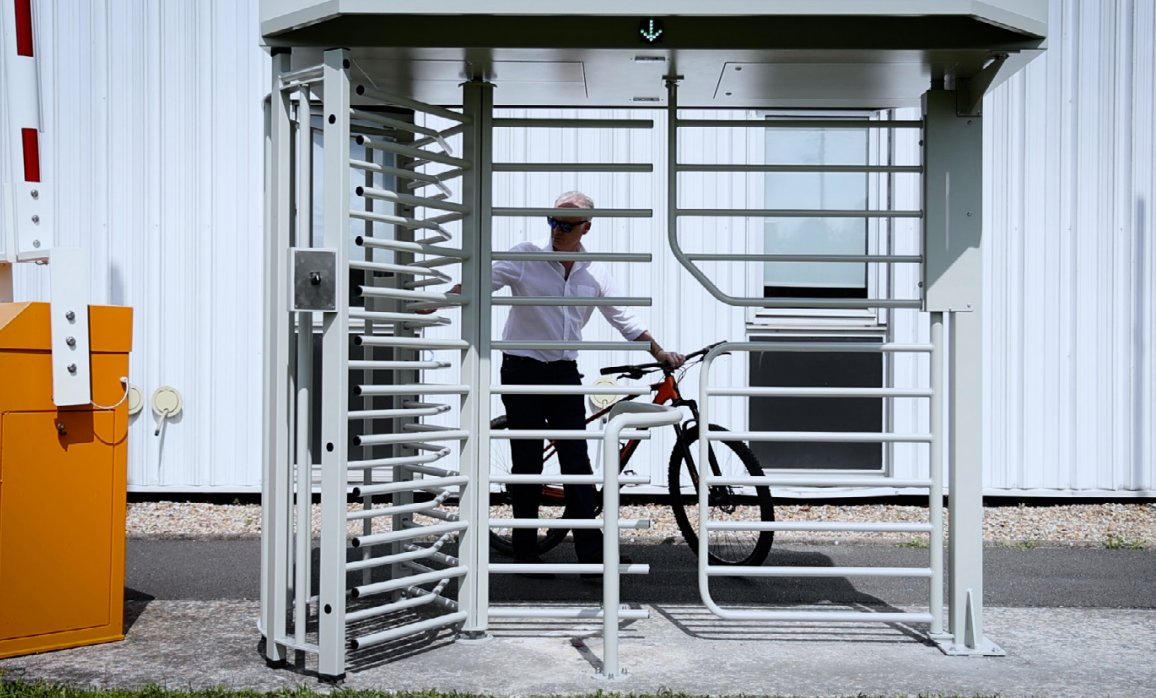

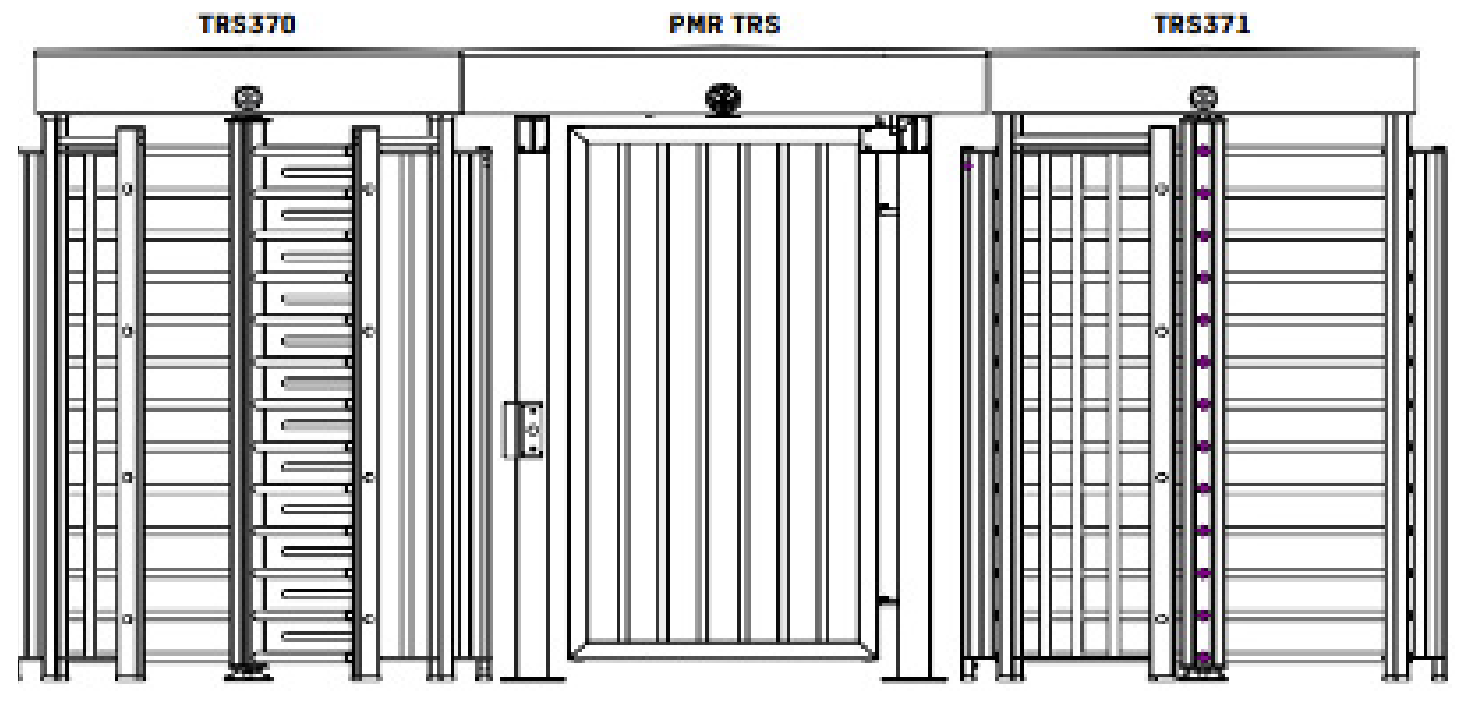

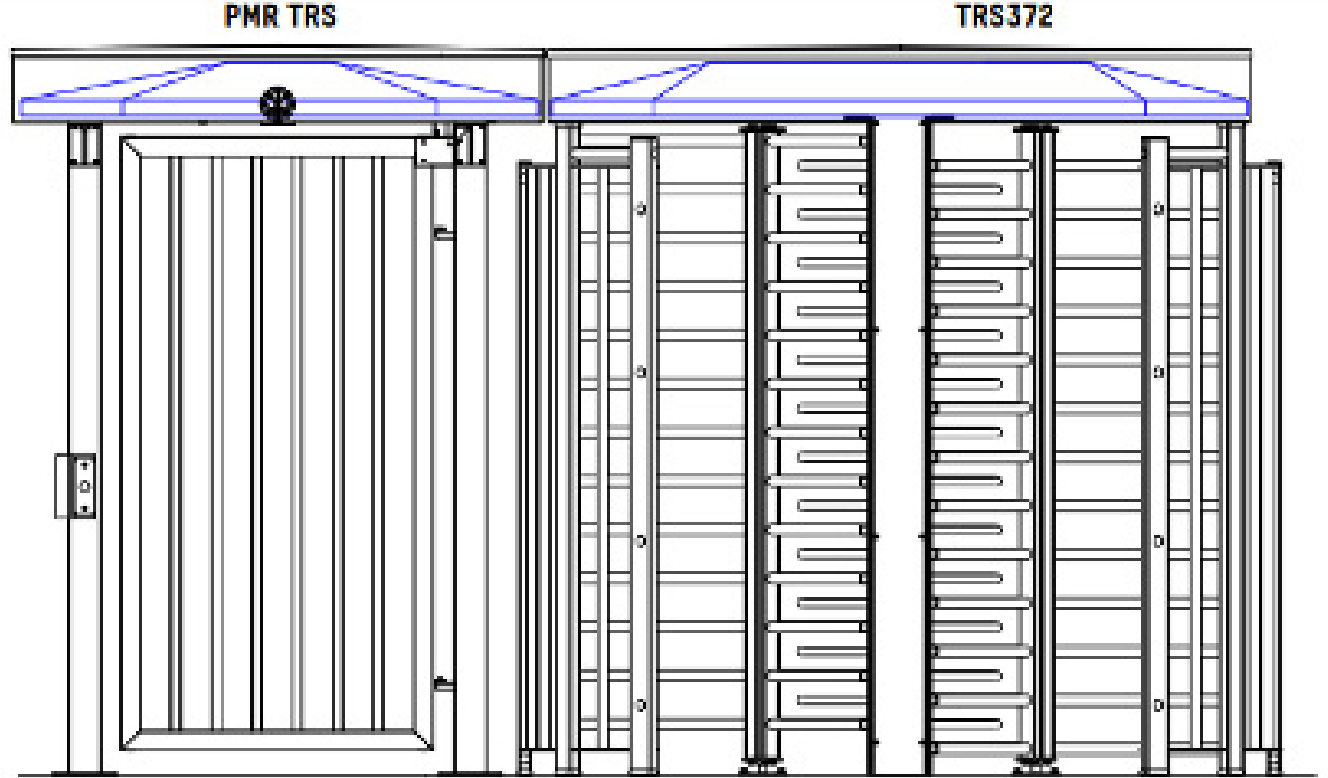

TRS PMR

This product is designed for people with reduced mobility and for deliveries to site. It has a free passage width of 1050mm.

It opens in the direction of travel (not a common feature) for the easiest possible bidirectional transit.

Two versions are available:

1. Manually operated: uses hydraulic closers to close automatically after use
2.Motorised: operated automatically

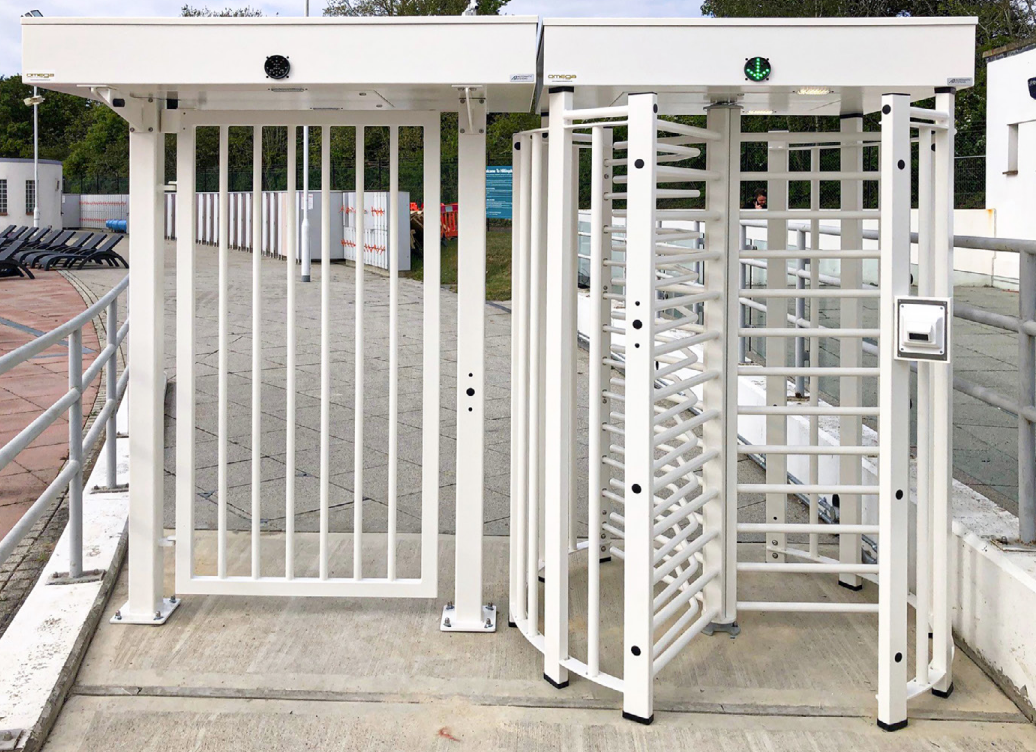

The TRS is designed to sit alongside a TRS full height turnstile ensuring a seamless design finish.

Installation

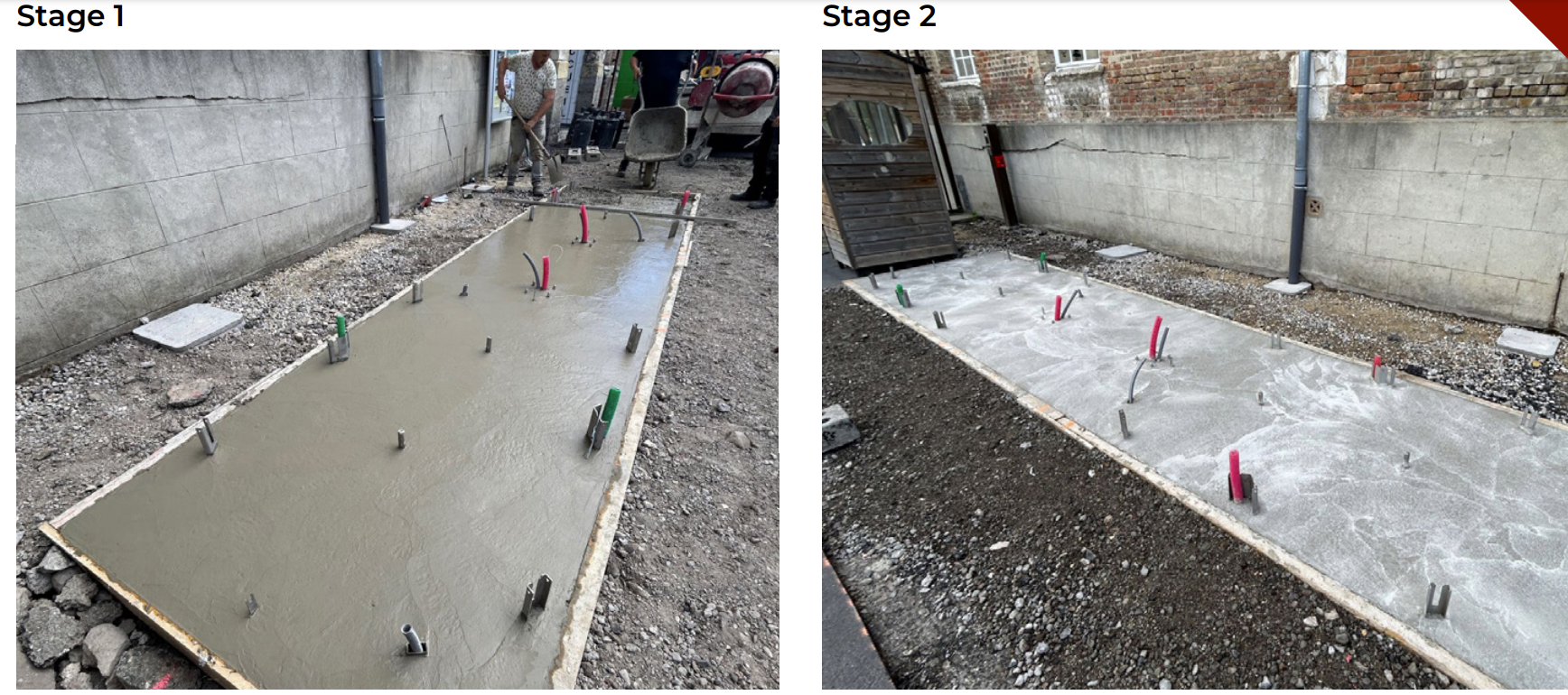

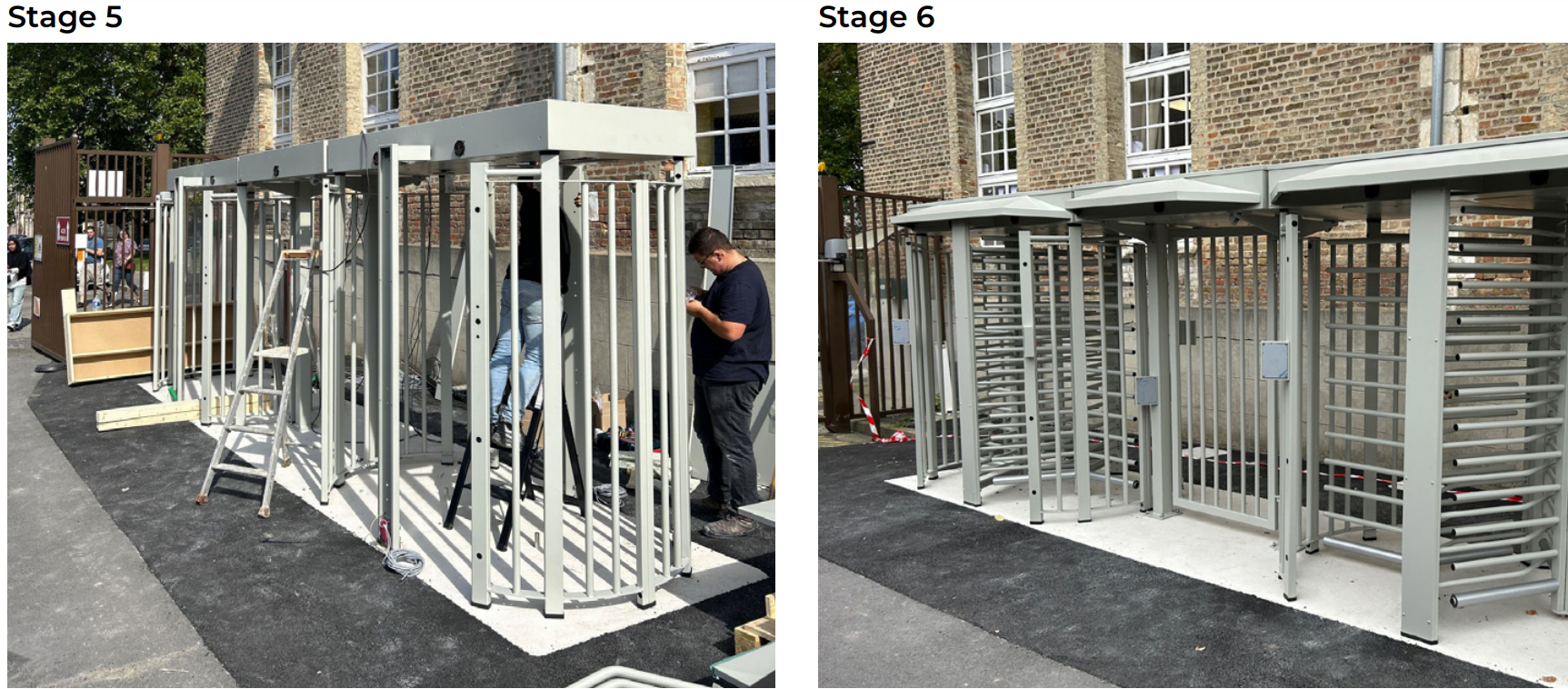

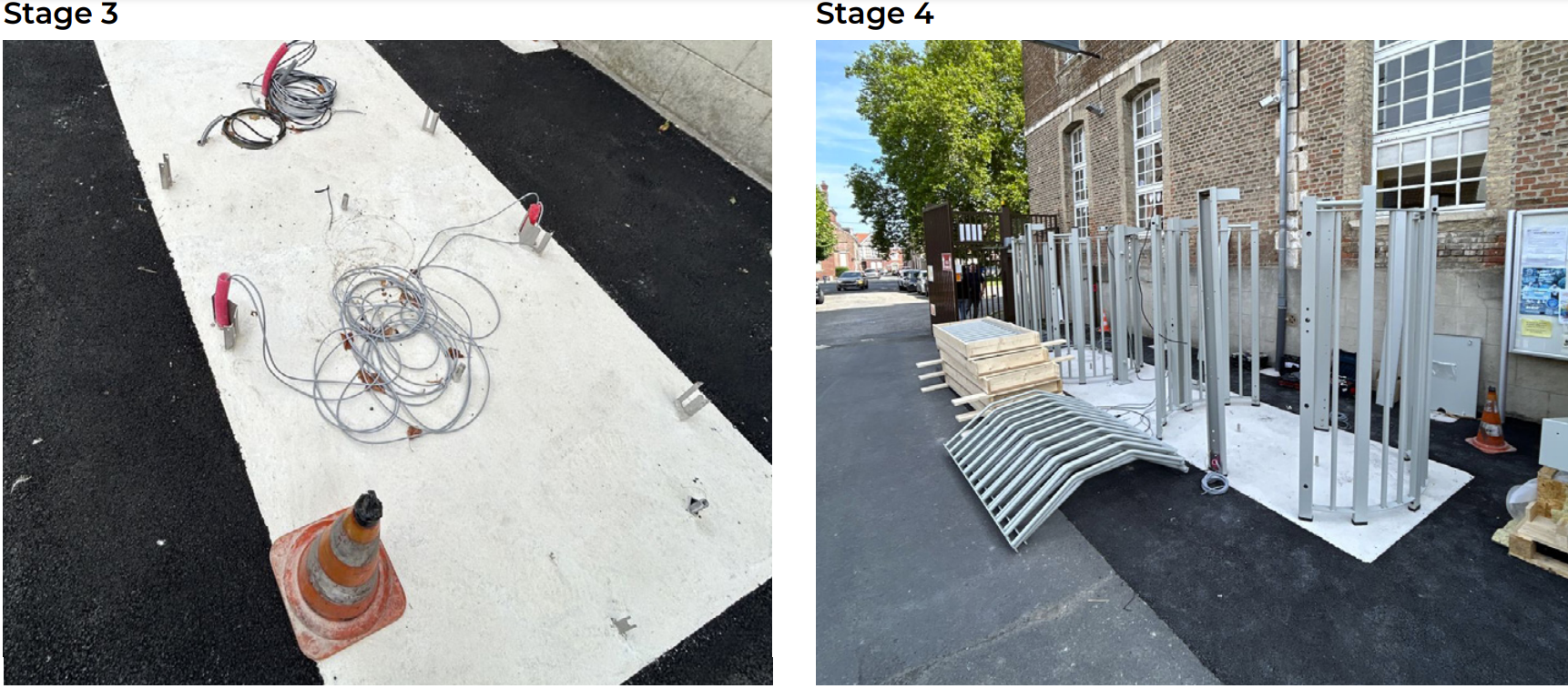

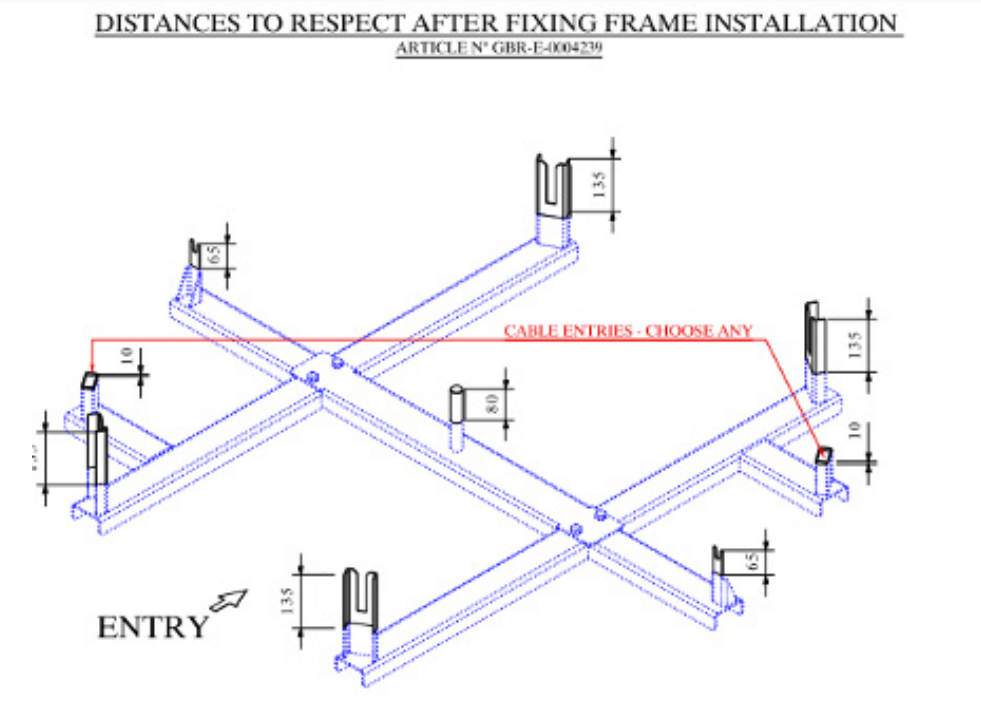

The equipment needs to be installed onto a solid flat surface, typically a concrete base is needed as part of the process. Automatic Systems sends out a fixing frame in advance so that when the equipment is installed it has a solid framework to work from.

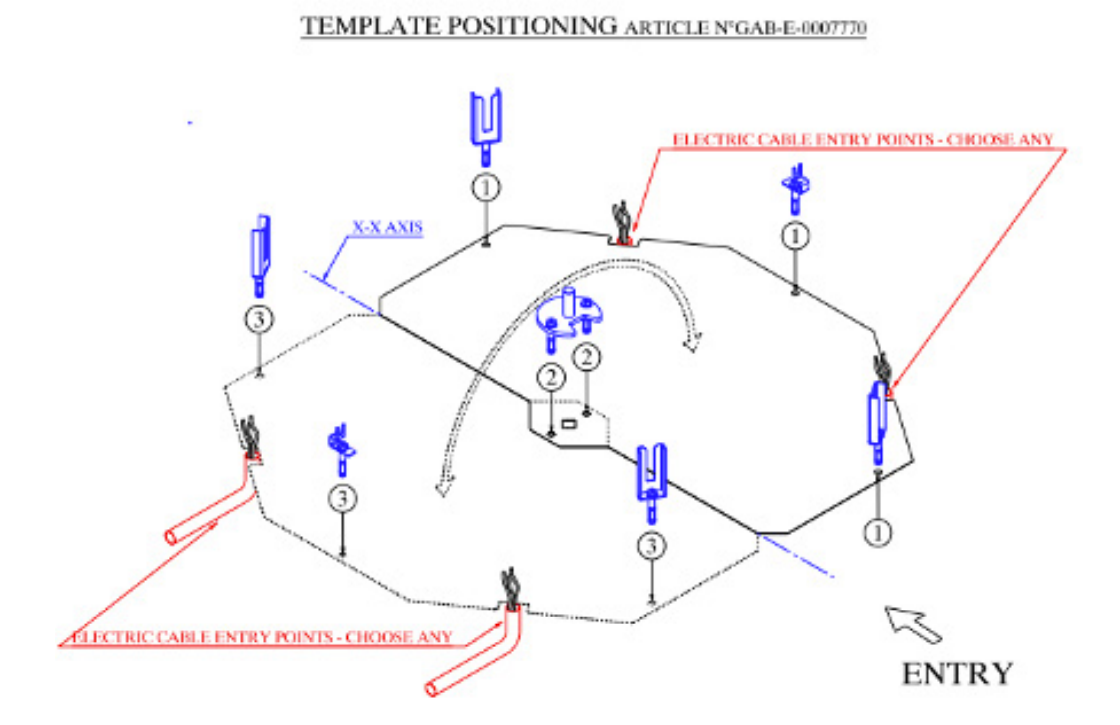

Occasionally a suitable surface already exists, and a template is then provided to position the brackets in the floor.

Overall, full-height turnstiles provide a combination of physical security, efficient access control, and cost savings, making them a vital component in securing any building.

Please contact us to find out more.
