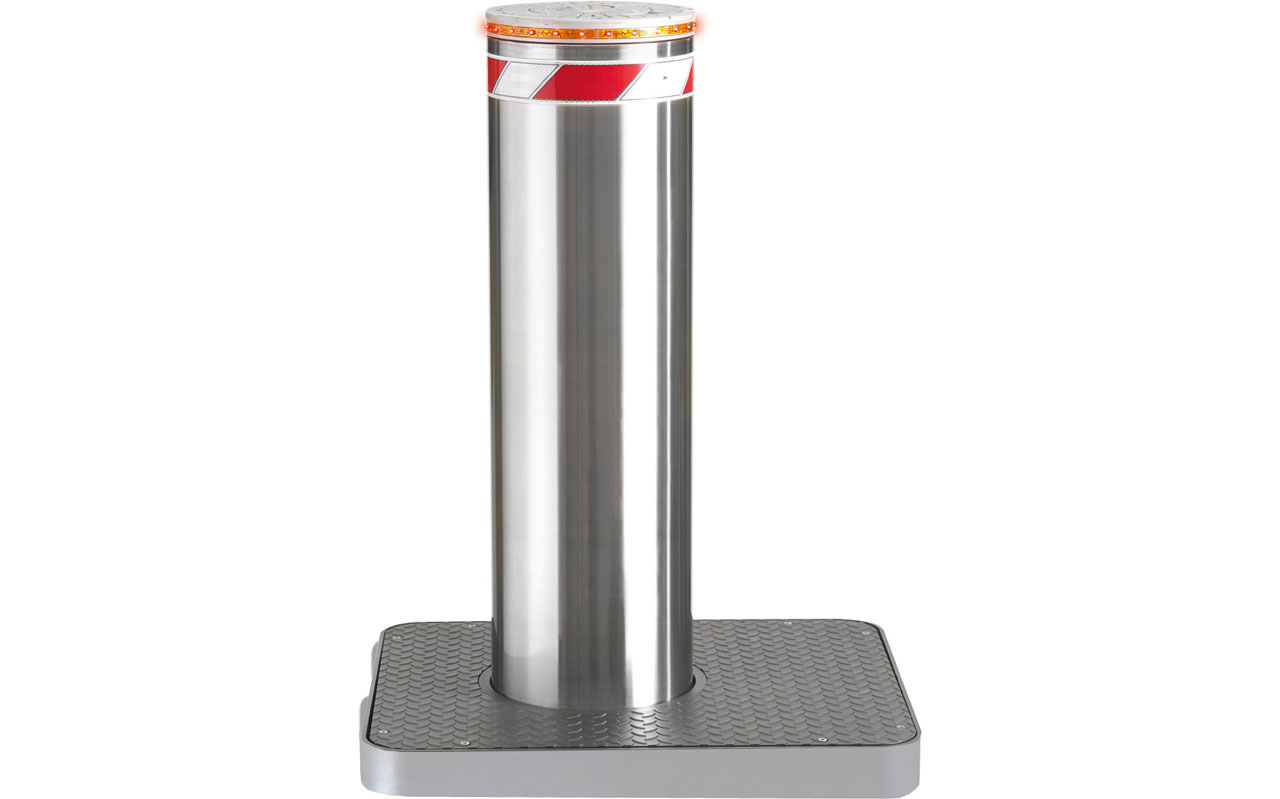

RB M50_900

High-security antiterrorist bollards (height 900mm)

The RB M50 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h)


room-map

Technical specifications

Crash test certified DOS K12/L1
Rated in compliance with PAS68:2013 V/7500(N3)/80/90
IWA 14-1:2013 V/7200(N3C)/80/90
ASTM M50
Impact resistance 2.000.000 joules
7,5T at 80km/h
3,5T at 112km/h
Obstacle height 900 mm
Obstacle diameter 275 mm
Foundation depth 1700 mm
Rising / lowering speed 4 / 4 sec
Enhanced speed available
Emergency Fast opening (Rising time) 1 sec
Hours / Days cycles 300 / 2000




  • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the obstacle to be lowered from a remote location OR to be raised (manual pump) OR an uninterrupted operation (UPS)
  • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
  • Finishing: the bollard is available in painted steel (with or without ribs) and in brush stainless steel.
  • The hydraulic pump is built in the pit of the bollard
  • The control unit is housed in a cabinet which could be up to 60m remote. It’s could be also integrated in a ground retractable cabinet
