FB M30_700-900

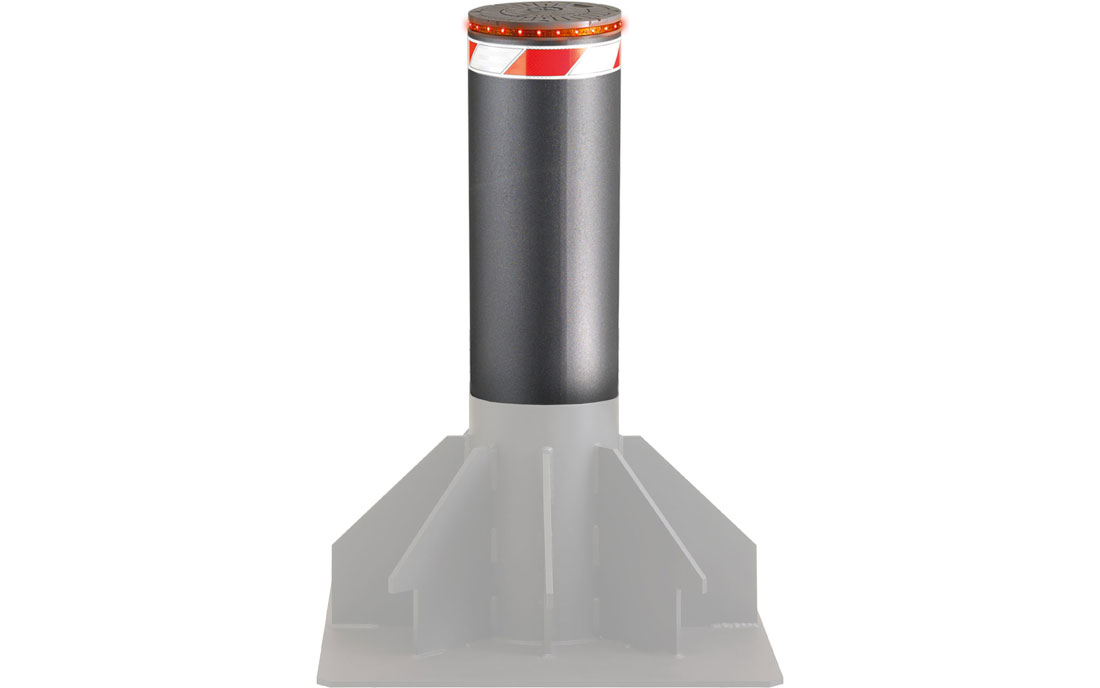

High-security antiterrorist bollards (height 700 or 900 mm)

The FB M30 fixed bollards (or passive bollards) are anti-ram devices capable of stopping a 7,5T vehicle at a speed of 48km/h (or 3,5T at 64km/h)


room-map

Technical specifications

Rated in compliance with PAS68:2013 V/7500(N3)/48/90
IWA 14-1:2013 V/7200(N3C)/48/90
DOS K4 & ASTM M30
Impact resistance 750.000 joules
7,5T at 48km/h
3,5T at 64km/h
Obstacle height 700 / 900 mm
Obstacle diameter 275 mm
Foundation depth 400 mm
Fixed obstacle Non unscrewable / fixed into the ground




  • The operation can be signaled by LEDS on the obstacle.
  • Finishing: the bollard is available in painted steel (With or without ribs) and in brush stainless steel.
