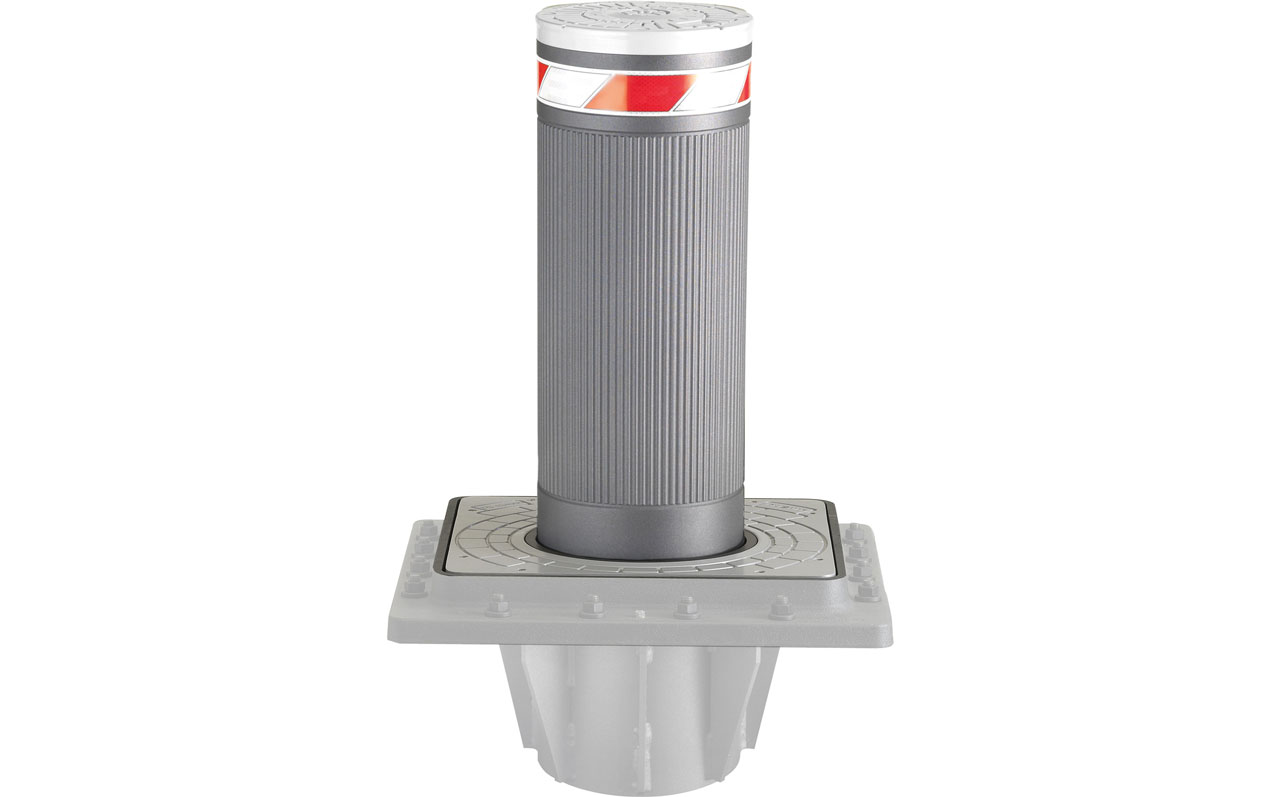

FB M30UN_700
High-security antiterrorist bollards (height 700 mm)
The FB M30 fixed bollards (or passive bollards) are anti-ram devices capable of stopping a 7,5T vehicle at a speed of 48km/h (or 3,5T at 64km/h)
Technical specifications |
|
| Rated in compliance with | PAS68:2013 V/7500(N3)/48/90 IWA 14-1:2013 V/7200(N3C)/48/90 DOS K4 & ASTM M30 |
| Impact resistance | 750.000 joules 7,5T at 48km/h 3,5T at 64km/h |
| Obstacle height | 700 mm |
| Obstacle diameter | 275 mm |
| Foundation depth | 1300 mm |
| Fixed obstacle | Unscrewable with counterframe |
- The operation can be signaled by LEDS on the obstacle.
- Finishing: the bollard is available in painted steel (With or without ribs) and in brush stainless steel.
