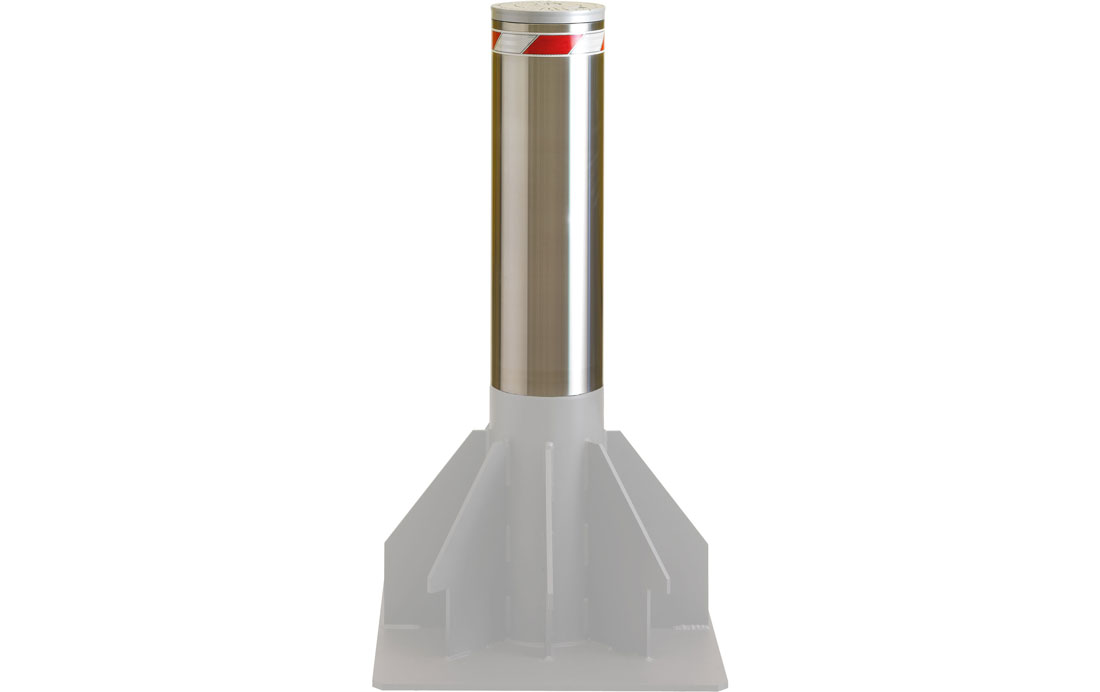

FB M40_900/1200
High-security antiterrorist bollard (height 900 or 1200mm)
The FB M40 fixed bollards (or passive bollards) are anti-ram devices capable of stopping a 7,5T vehicle at a speed of 64km/h (or 3,5T at 96km/h)
Technical specifications |
|
| Rated in compliance with | PAS68:2013 V/7500(N3)/64/90 IWA 14-1:2013 V/7200(N3C)/64/90 DOS K8 & ASTM M40 |
| Impact resistance | 1.200.000 joules 7,5T at 64km/h 3,5T at 96km/h |
| Obstacle height | 900 / 1200 mm |
| Obstacle diameter | 275 mm |
| Foundtation depth | 400 mm |
| Fixed obstacle | Non unscrewable / fixed into the ground |
- The operation can be signaled by LEDS on the obstacle.
- Finishing: the bollard is available in painted steel (With or without ribs) and in brush stainless steel.
