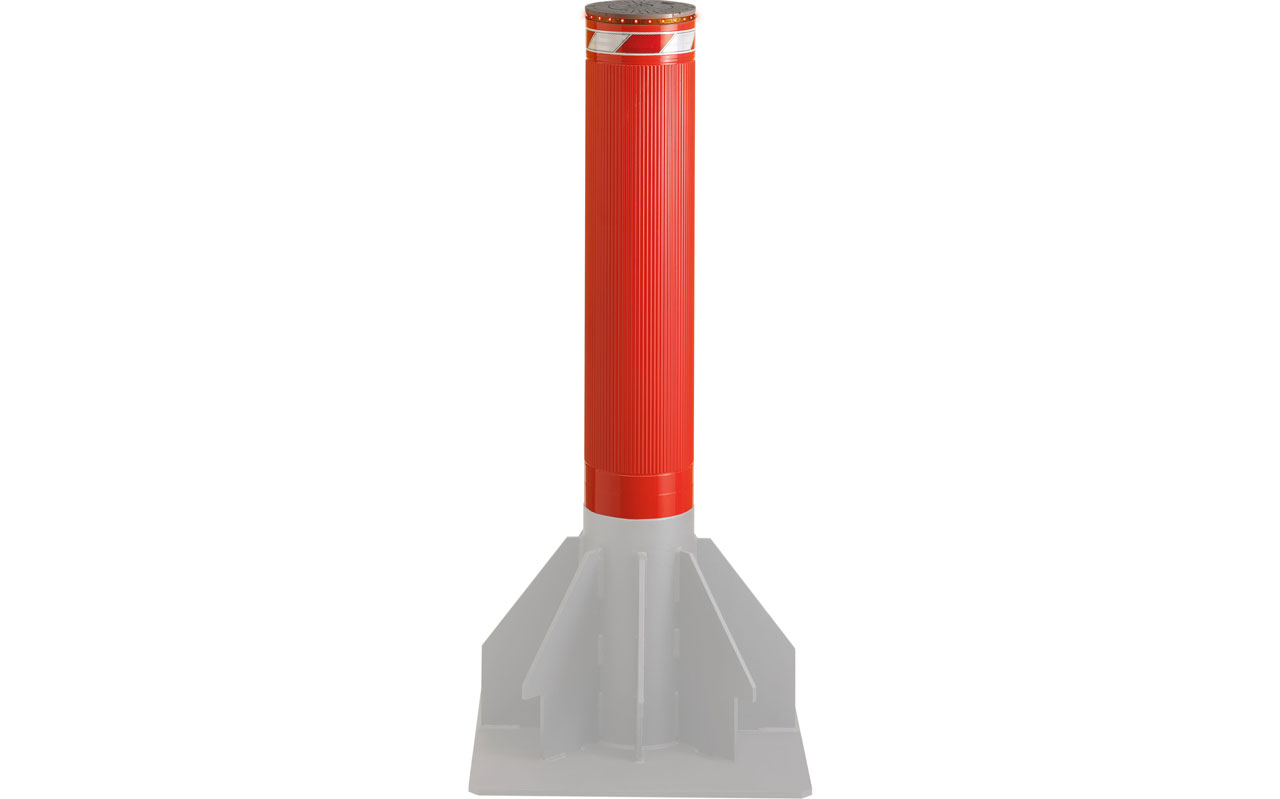

High-security antiterrorist bollards (height 900 or 1200mm)
The FB M50 fixed bollards (or passive bollards) are anti-ram devices capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h)
|Rated in compliance with||PAS68:2013 V/7500(N3)/80/90
IWA 14-1:2013 V/7200(N3C)/80/90
DOS K12 & ASTM M50
|Impact resistance||2.000.000 joules
7,5T at 80km/h
3,5T at 112km/h
|Obstacle height||900 / 1200 mm|
|Obstacle diameter||275 mm|
|Foundation depth||600 mm|
|Fixed obstacle||Non unscrewable / fixed into the ground|
- The operation can be signaled by LEDS on the obstacle.
- Finishing: the bollard is available in painted steel (With or without ribs) and in brush stainless steel.
You can access all of our product documentation such user manuals, spare parts catalogue, engineering specifications, certifications, REVIT drawings and much more by connecting to our downloading platform, PartnerPortal.
