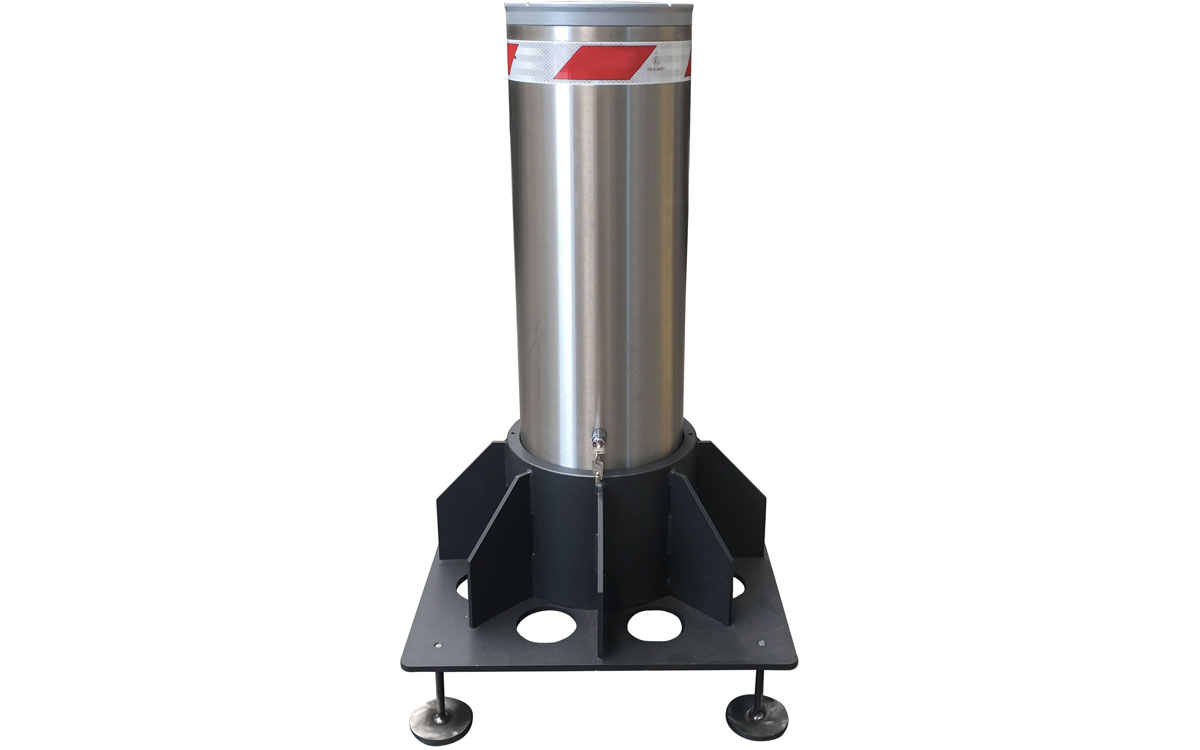

FR M30_700-900

High-security antiterrorist bollards (height 700 & 900mm)

The FR M30 bollard is a removable anti-ram devices capable of stopping a 7,5T vehicle at a speed of 48km/h (or 3,5T at 64km/h)


room-map

Technical specifications

Rated in compliance with PAS68:2013 V/7500(N3)/48/90
IWA 14-1:2013 V/7200(N3C)/48/90
DOS K4 & ASTM M30
impact resistance 750.000 joules
7,5T at 48km/h
3,5T at 64km/h
Obstacle height 700 / 900 mm
Obstacle diameter 275 mm
Foundation depth 360 mm

  • Finishing: the bollard is available in painted steel and in brush stainless steel.
  • More fixed basements can be installed in the ground than available moving cylinders
