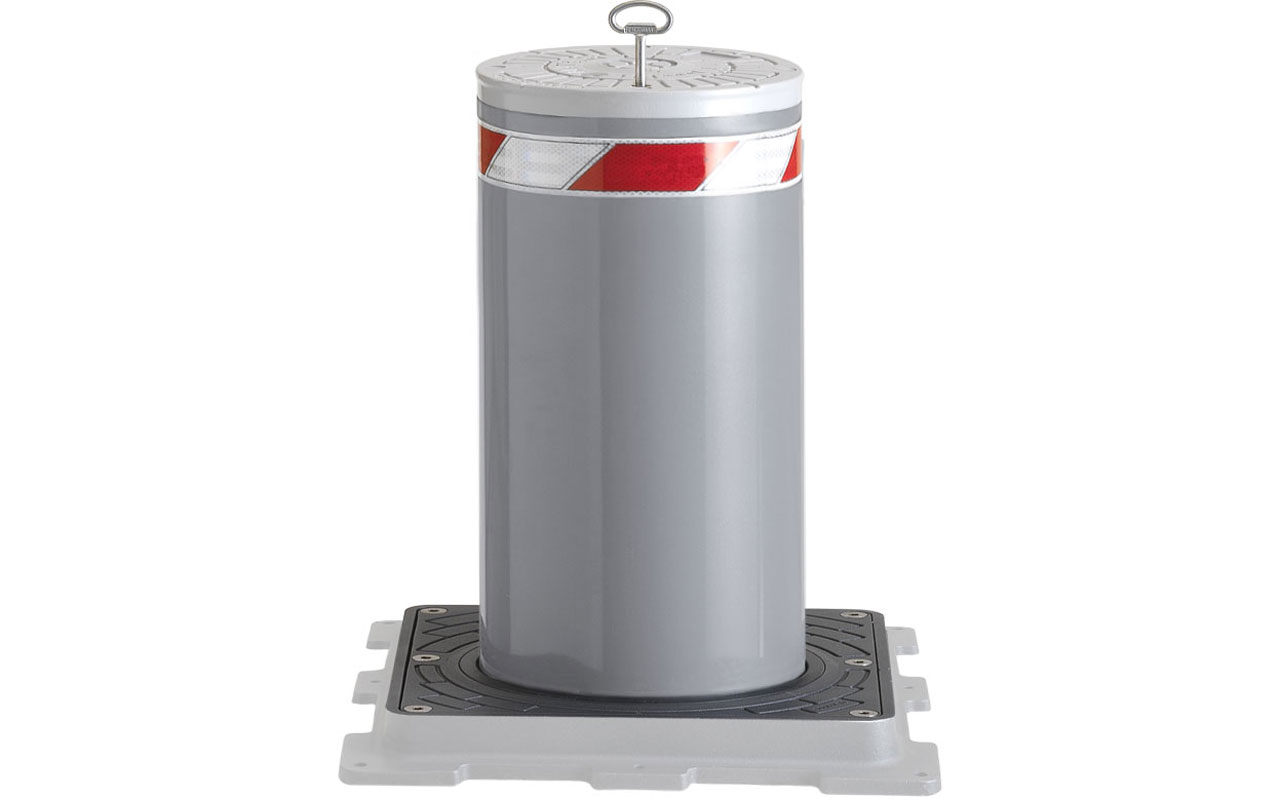

Urban semi-automatic Bollards (height 500, 600 or 800mm)

The MB bollard is a manually lowering device which is lifted by a gas actuator.


Technical specifications

Rated in compliance with PAS68:2013 V/3500(N1)/32/90
IWA 14-1:2013 V/3500(N1)/32/90
Impact resistance 250.000 joules
3,5T at 32km/h
1,5T at 64km/h
Obstacle height 500 / 600 / 800 mm
Obstacle diameter 275 mm
Foundation depth 1100 / 1200 / 1300 mm
Rising / lowering speed 3 / – Sec


  • The operation can be signaled by LEDS on the obstacle.
  • Finishing: the bollard is available in painted steel and in brush or painted stainless steel.
