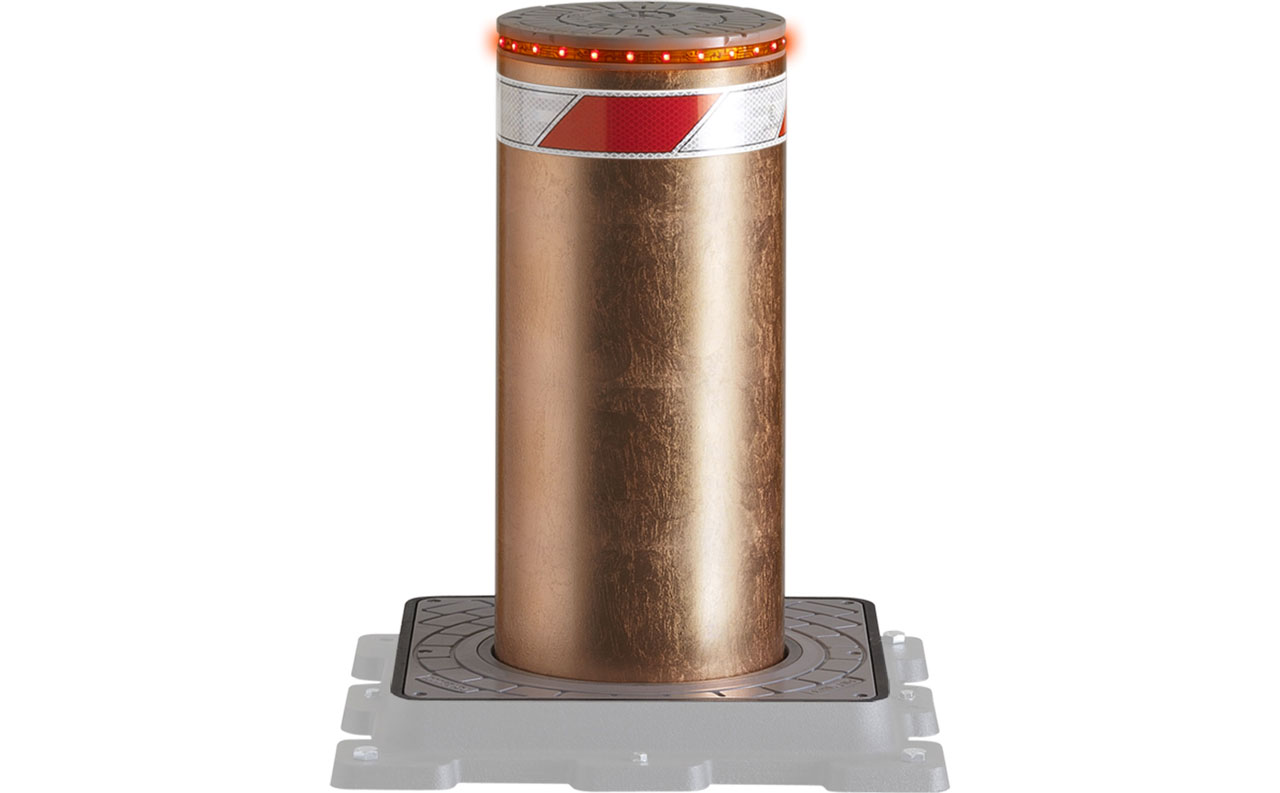

RB C60_600

Urban or anti vandalism bollards (height 600 mm)

The RB C60 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 3,5T vehicle at a speed of 48km/h (or 1,5T at 80km/h)


room-map



Technical specifications

Rated in compliance with PAS68:2013 V/3500(N1)/48/90
IWA 14-1:2013 V/3500(N1)/48/90
ASTM C60
Impact resistance 400.000 joules
3,5T at 48km/h
1,5T at 80km/h
Obstacle height 600 mm
Obstacle diameter 275 mm
Foundation depth 1230 mm (or suspended pit)
Rising / lowering speed  4 / 2.5 sec
Emergency Fast opening (Rising time) 1 sec
Hours / Days cycles 300 / 2000




  • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the automatic lowering of the obstacle OR to be lowered from a remote location OR an uninterrupted operation (UPS)
  • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
  • Finishing: the bollard is available in painted steel and in brush stainless steel.
  • The hydraulic pump is built in the pit of the bollard
  • The control unit is housed in a cabinet which could be up to 80m remote. It’s could be also integrated in a ground retractable cabinet
