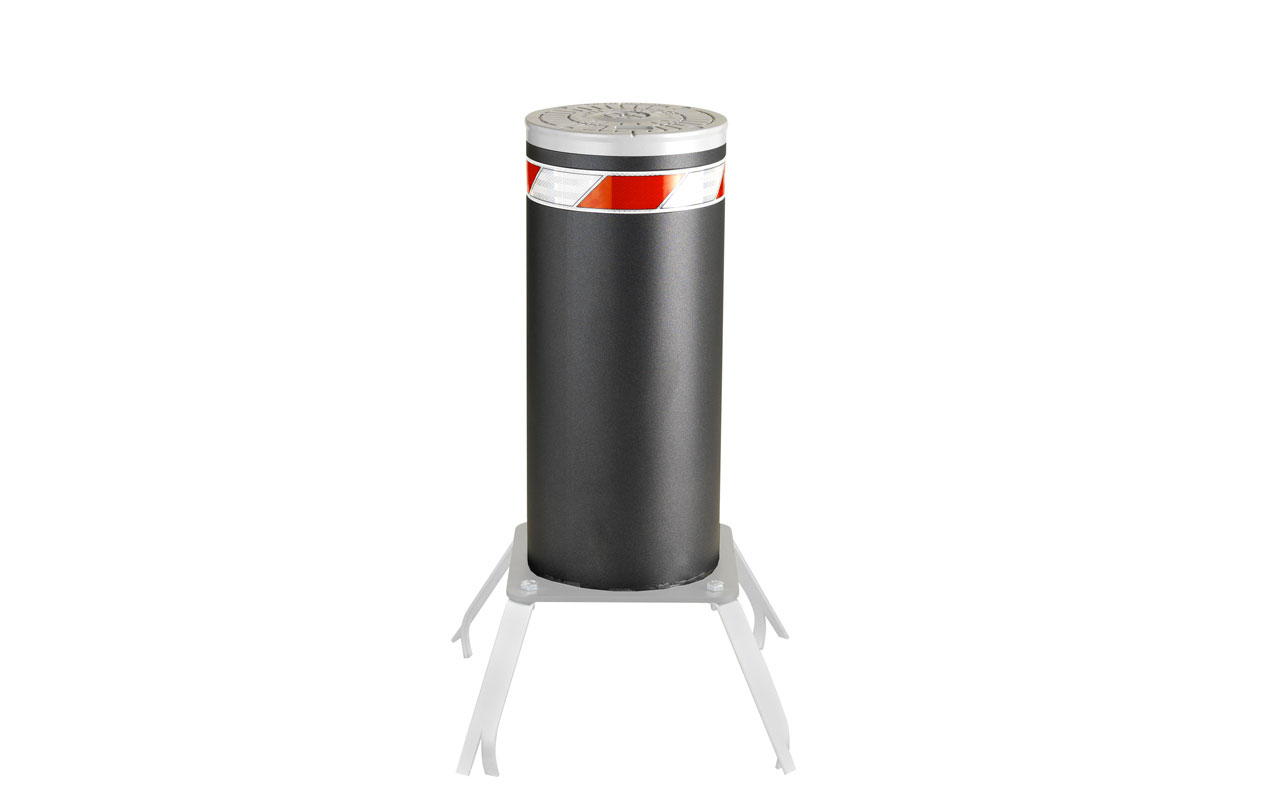

FB C60_600-800
Urban or anti vandalism bollards (height 600 or 800mm)
The FB C60 fixed bollards (or passive bollards) are devices capable of stopping a 3,5T vehicle at a speed of 48km/h (or 1,5T at 80km/h)
Technical specifications |
|
| Rated in compliance with | PAS68:2013 V/3500(N1)/48/90 IWA 14-1:2013 V/3500(N1)/48/90 ASTM C60 |
| Impact resistance | 400.000 joules 3,5T at 48km/h 1,5T at 80km/h |
| Obstacle height | 600 – 800 mm |
| Obstacle diameter | 275 mm |
| Foundation depth | 400 mm |
| Fixed obstacle | Non unscrewable/ fixed into the ground |
- The operation can be signaled by LEDS on the obstacle.
- Finishing: the bollard is available in painted steel and in brush stainless steel.
