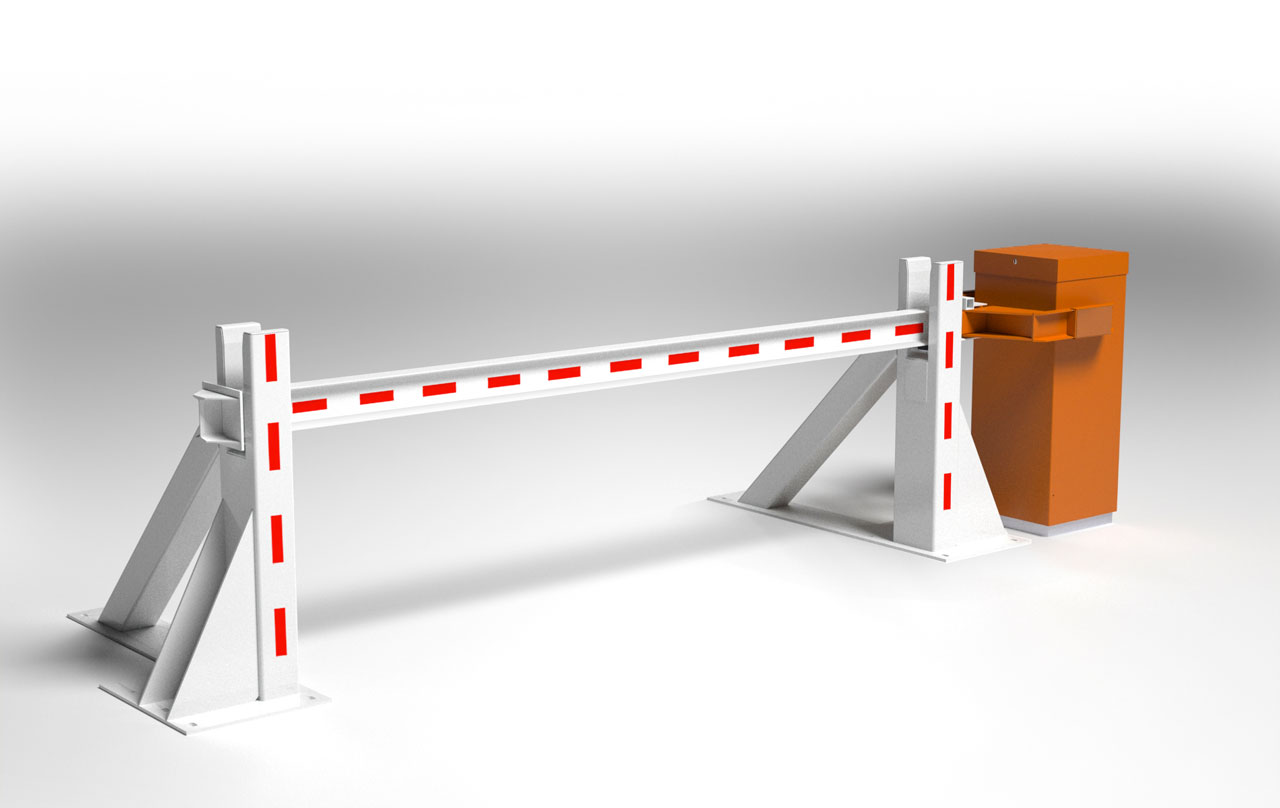

BL43 C50N1

Electromechanical beam barriers (3m width)

The BL43 C50 barriers are retractable automatic anti-ram devices capable of stopping a 3,5T vehicle at a speed of 32km/h (or 1,5T at 64km/h)


room-map

Technical specifications

Rated in compliance with PAS68:2013 V/1500(M1)/64/90
IWA 14-1:2013 V/1500(M1)/64/90
ASTM C50
Impact resistance 250.000 joules
3,5T at 32km/h
1,5T at 64km/h
Obstacle height 770mm
Obstacle width 3 m
Foundation depth 300mm
Rising / lowering speed 3.5 / 5.5 sec
Hours / Days cycles 400 / 5000




  • The operation can be signaled by LEDS on the beam and on the cabinet, a buzzer and traffic lights.
  • Beam locking
