BP 56

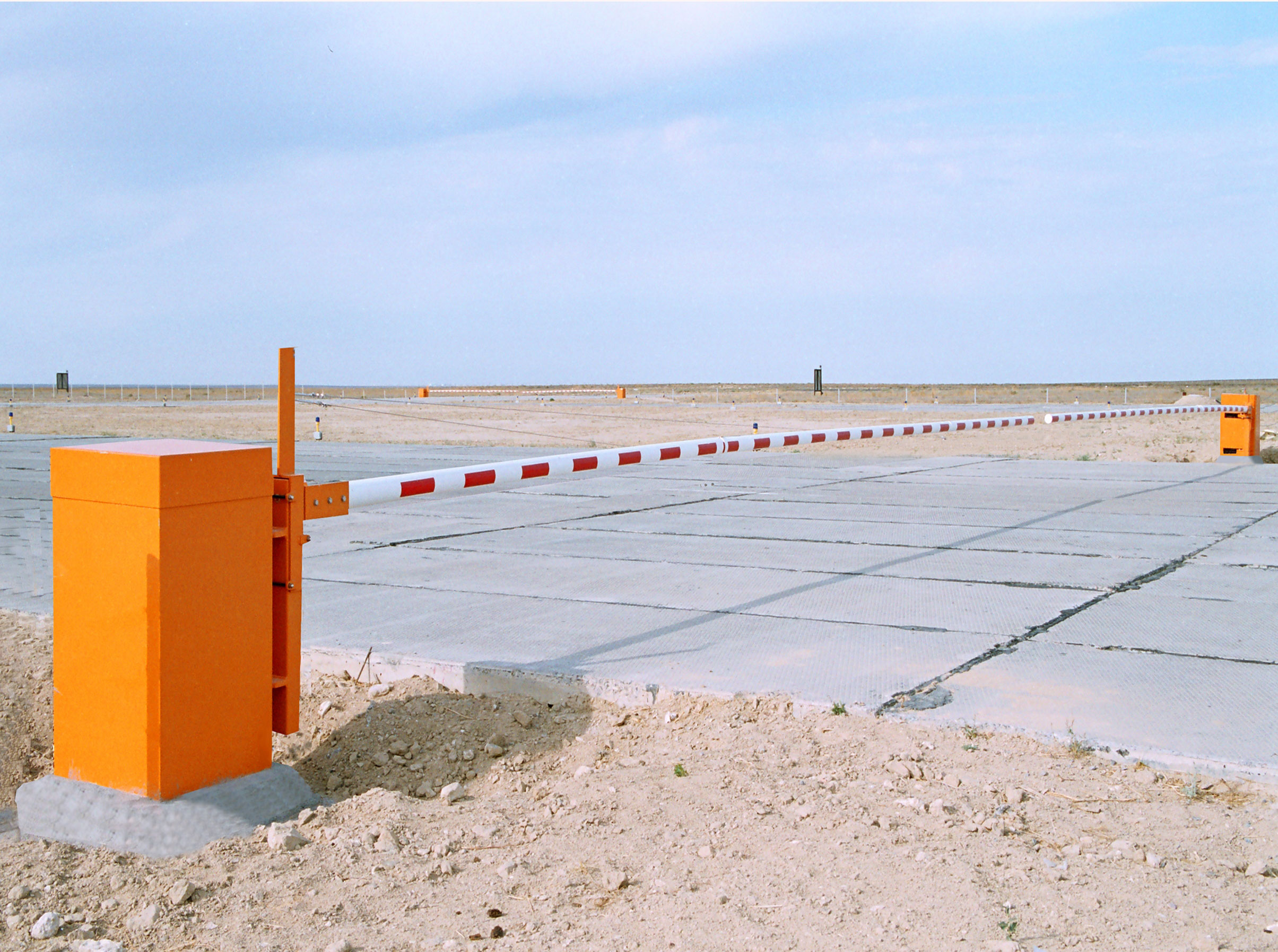

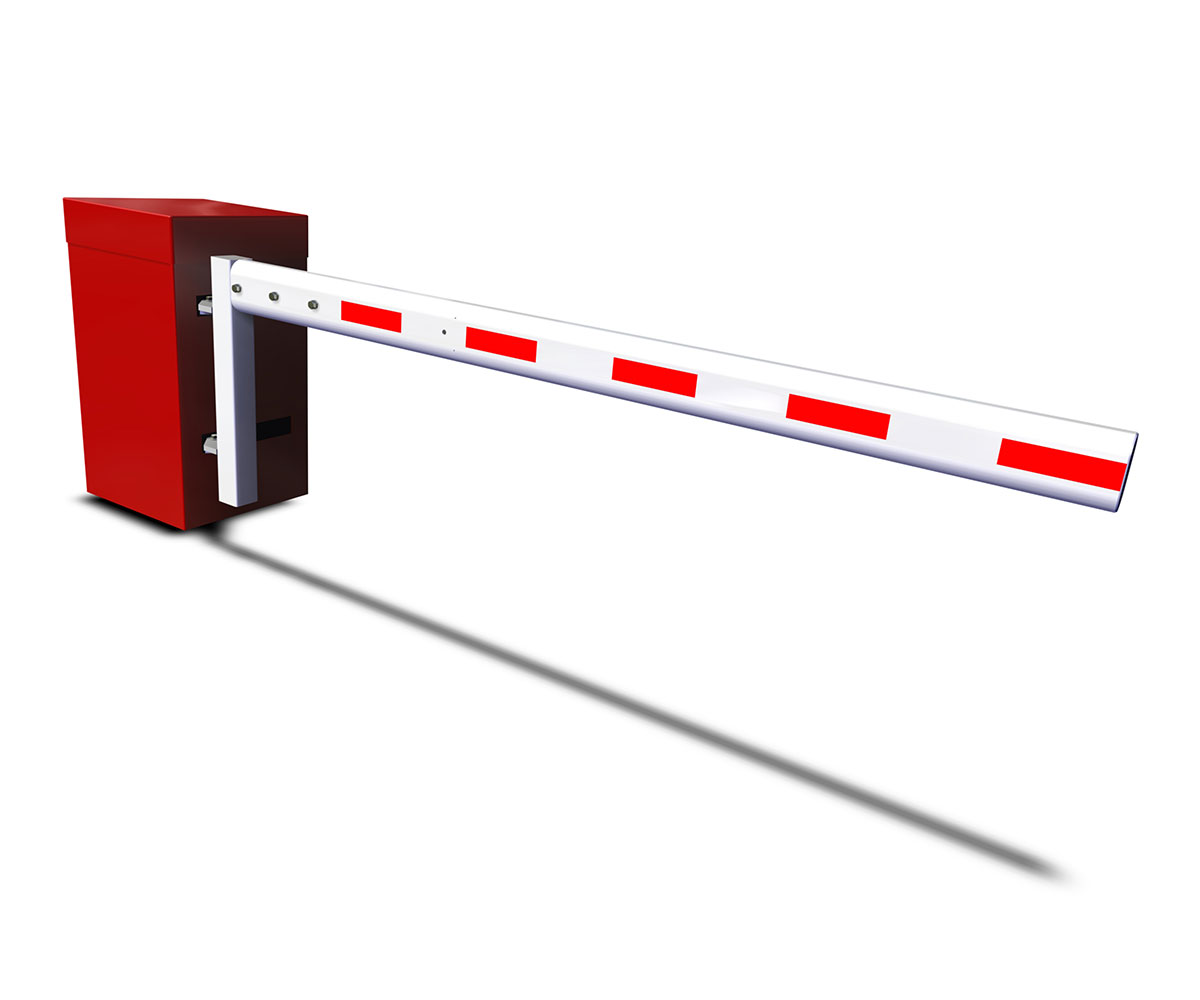

The BP 56 swing barrier from AUTOMATIC SYSTEMS is a state-of-the-art solution specially designed for efficient traffic management in demanding environments such as motorways, tunnels and mobile bridges. With its robust construction and advanced features, it ensures optimum control of vehicle flows, while guaranteeing high reliability and durability.

Robust design :

Folded and welded sheet steel casing, varying in thickness from 3 to 10 mm for added strength.
Removable top cover, secured from the inside for easy access to the mechanism.

Advanced electromechanical technology :

250 W three-phase asynchronous motor coupled to a worm gear reducer for smooth, jolt-free movement.
Connecting rod/crank motion transmission system, guaranteeing gradual acceleration and deceleration, with mechanical locking in the open or closed position.

Performance and safety :

Operating time of just 9 seconds, with a capacity of 1,500,000 cycles between failures, with regular maintenance.
Adjustable torque limiter for maximum safety, accompanied by an emergency crank handle with circuit breaker for emergency situations.

Robust runner :

Reinforced oval-section aluminium rail (100 x 175 mm), enamelled white with red reflective stripes, up to a maximum length of 8 metres.

Flexibility and customisation :

Wide range of options available, including control solutions (button boxes, radio transmitters/receivers), signalling devices (LED lighting, traffic light management), and special treatments for salty environments.

Optimum protection:

Surface treatment with zinc phosphating, cataphoresis, and anti-rust paint for increased longevity, even in salty conditions.

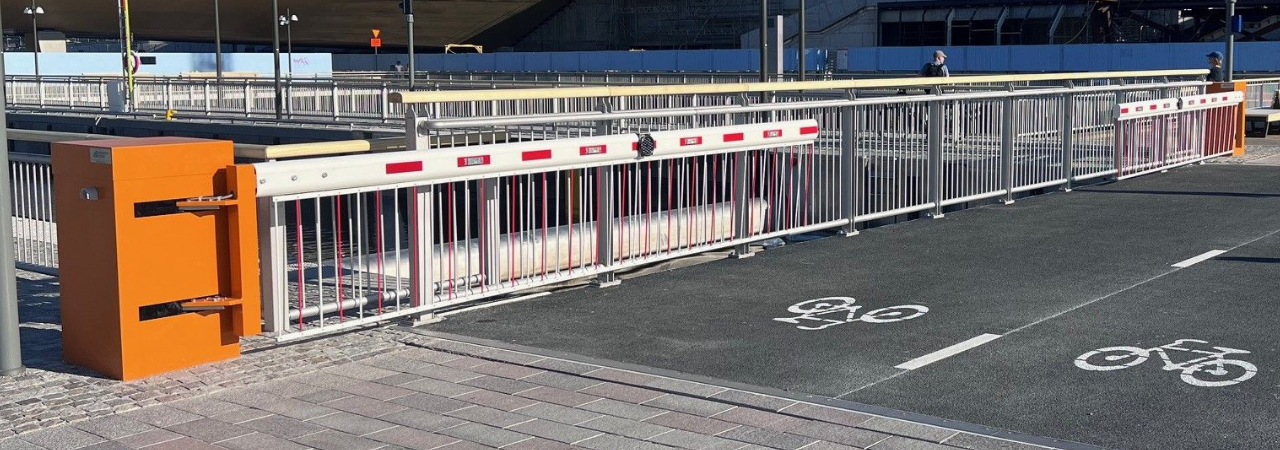

The BP 56 is ideal for infrastructures requiring rigorous, secure access control, such as tunnels and movable bridges, as well as motorways in the event of lane closures.

Its modular design and wide range of customisation options make it the ideal choice for complex projects requiring specific adaptation to site requirements.
